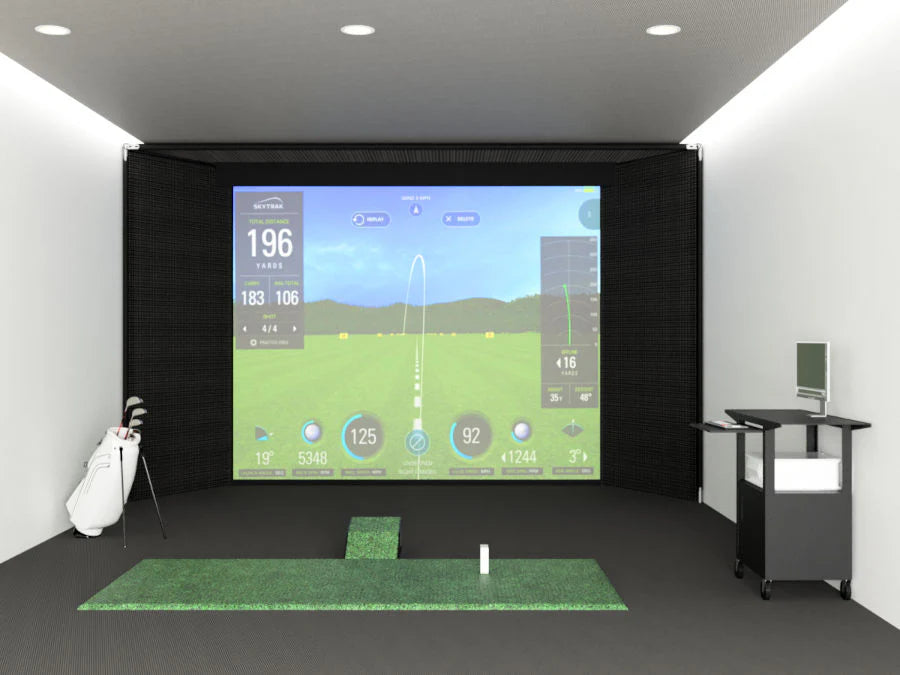

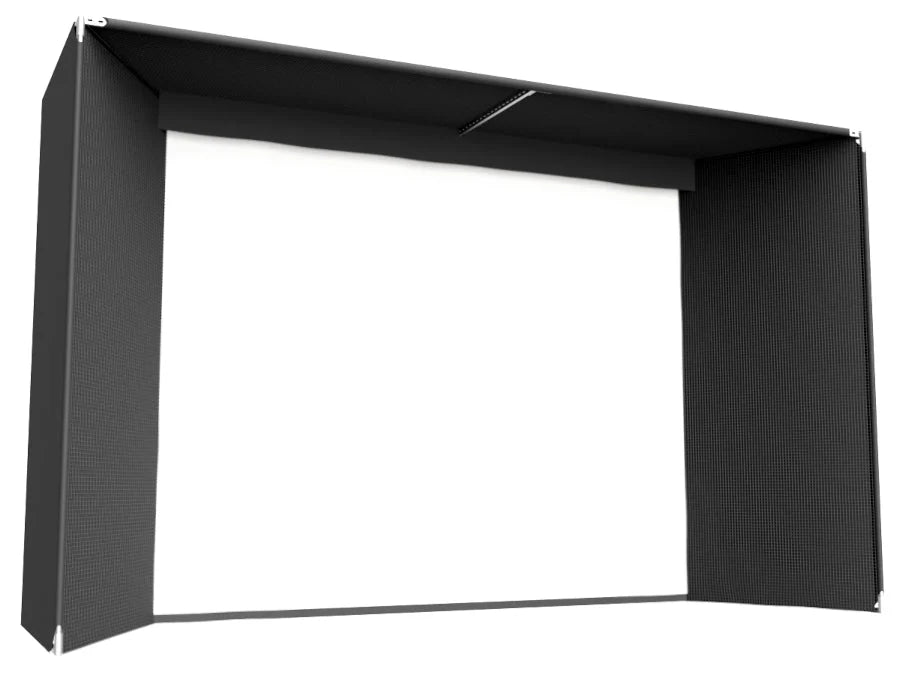

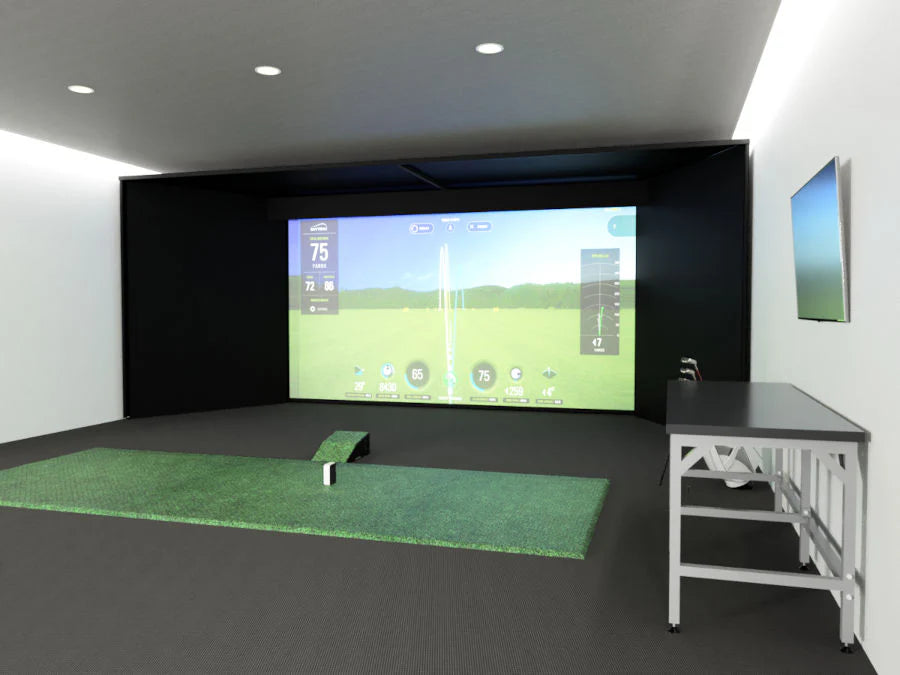

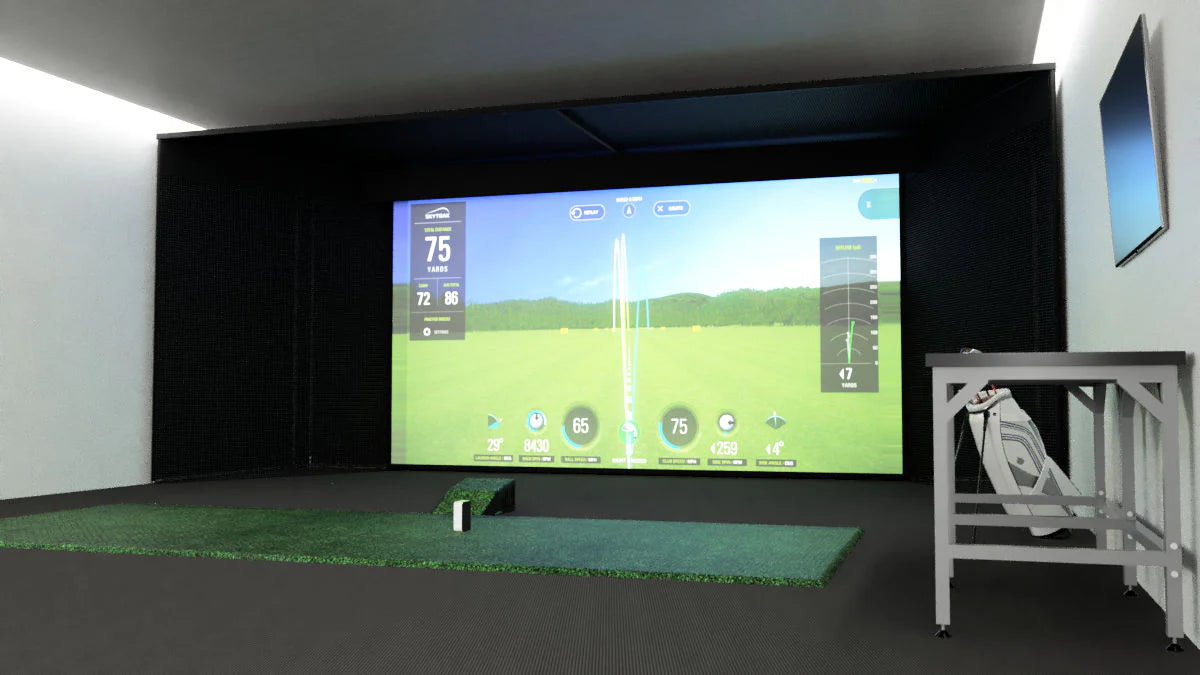

StudioBay™ Commercial Golf Simulator Enclosure

The AllSportSystems StudioBay™ is a commercial-grade, wall-to-wall indoor golf simulator enclosure designed to fill the entire width of a room from side to side. Unlike standard hitting bays, the StudioBay™ positions the impact screen inside a "Floating ViewPort" — the screen is mounted 48 inches from the front of the enclosure on a rigid SkyBridge™ UniStrut screen pole, set 12 inches inward from the rear frame so that no rear cage structure is in play. This recessed position means the back of the enclosure can sit directly against a wall with no gap required. Two embedded angled interior netting sections extend from the sides of the enclosure inward to the ViewPort, providing full left-to-right ball protection across the entire room width. The ShotDefender™ safety valance hangs on a tension cable approximately 6 inches in front of the screen pole to eliminate any ricochet risk. A baffle net hangs directly behind the screen for secondary containment, and a hidden bungee tensioning system sets precise screen tension without exposing any poles to ball contact. Overlapping BlackOut™ commercial-grade fabric panels cover the sides, top, and optionally the rear for a clean, dark, professional hitting environment. The top and screen spans are built with rigid steel channel strut (UniStrut/SuperStrut) and patented SkyBridge™ brackets to prevent sagging at wide dimensions. The StudioBay™ starts at 12 feet wide and can be built up to 20 feet wide. Custom sizes are available, and poles and strut are sold separately.

Note: EMT poles and steel channel strut (UniStrut/SuperStrut) are not included and must be purchased locally or as an add-on. Use 1" common EMT conduit (actual diameter 1-3/16" / 30.16 mm) and 1-5/8" × 7/8" (or 1-5/8" × 13/16") shallow channel strut. Quantities and cut lengths are provided in the included sizing chart.

Features

Wall-to-wall design fills the entire room width from side to side, starting at 12 ft wide up to 20 ft wide
Floating ViewPort design: impact screen hangs 48" from the front of the enclosure on a recessed rigid strut screen pole, 12" inward from the rear frame
Recessed screen position allows the back of the enclosure to sit directly against a wall with no gap
Embedded angled interior side netting extends from the sides of the enclosure to the Floating ViewPort for complete left-to-right ball protection
Built-in ShotDefender™ safety valance hangs on a tension cable 6" in front of the screen pole, eliminating ricochet risk
Baffle net mounted directly behind the impact screen for secondary ball containment
Hidden bungee screen tensioning system provides optimal screen flatness without exposing any interior poles
Overlapping BlackOut™ commercial-grade dual-finish fabric panels (2 side panels, 2 corner panels, 1 top center panel) provide a dark, professional hitting environment
Pipe sleeves on the two rear height poles for a clean finished look (strut sleeve included for center support on 16 ft+ systems)
Patented SkyBridge™ brackets with rigid UniStrut channel on the top and screen spans prevent sagging at wide dimensions
Center support strut included for systems 16 ft wide and larger (not needed when using SkyRailPLUS™)
Compatible with optional SkyRailPLUS™ cage-attached projector mount (no ceiling drilling required)
Compatible with optional BlackOut™ Back Panel for full rear enclosure coverage
Fabric upgrade options available: Standard, Premium, and Elite (multilayer foam-core for superior image quality, recommended for HD and 4K projectors)
Custom sizing available
EMT poles and UniStrut channel sold separately
Two persons recommended for assembly

What's Included

Fabric Components:

BlackOut™ Wrapper Kit (multiple pieces — side panels, corner panels, top center panel)
2x Pipe Sleeves (for rear height poles)
1x Impact Screen
4x Netting Sections (top net + embedded angled side netting)
1x Baffle Net

Cage Pole Connectors:

4x 3-Way Connectors
4x 90° Elbow Connectors
2x Pipe Couplers
2x Adjustable Metal Sleeves
4x T-Connectors

Cage Strut Connectors:

4x SkyBridge™ Brackets
2x Strut Extension Brackets
2x Center Support Hardware (for 16 ft wide and larger systems only)

Additional Hardware:

1x Package of Cable (Zip) Ties
3x Stainless Steel Cables & Turnbuckles (1x for ShotDefender™, 2x for netting support)
4x Red Bungees
2x Long Black Bungees

EMT poles and steel channel strut are not included. They can be purchased locally as 1" common EMT conduit and 1-5/8" shallow channel strut (UniStrut/SuperStrut), or ordered as an add-on. Quantities and cut lengths are detailed in the included sizing chart.

Specifications

Bay Size	Height	Width	Depth
Standard	8 ft	12 ft	5 ft
Standard	8 ft 6 in	14 ft	5 ft
Standard	9 ft	16 ft	5 ft
Standard	9 ft	18 ft	5 ft
Standard	10 ft	20 ft	5 ft
Standard	—	—	8 ft (available)
Custom	Available upon request

Screen Position: Recessed 12" from rear of cage; hanging 48" from front of enclosure
Frame Compatibility (EMT): 1" common EMT conduit (actual O.D. 1-3/16" / 30.16 mm)
Frame Compatibility (Strut): 1-5/8" × 7/8" or 1-5/8" × 13/16" shallow channel strut (UniStrut/SuperStrut)
Center Support: Required for bays 16 ft wide and larger (not needed with SkyRailPLUS™)
EMT Poles & Strut: Sold separately Wrapper/Panel
Material: BlackOut™ commercial-grade dual-finish fabric

Documentation

StudioBay™ Installation Guide (PDF)
