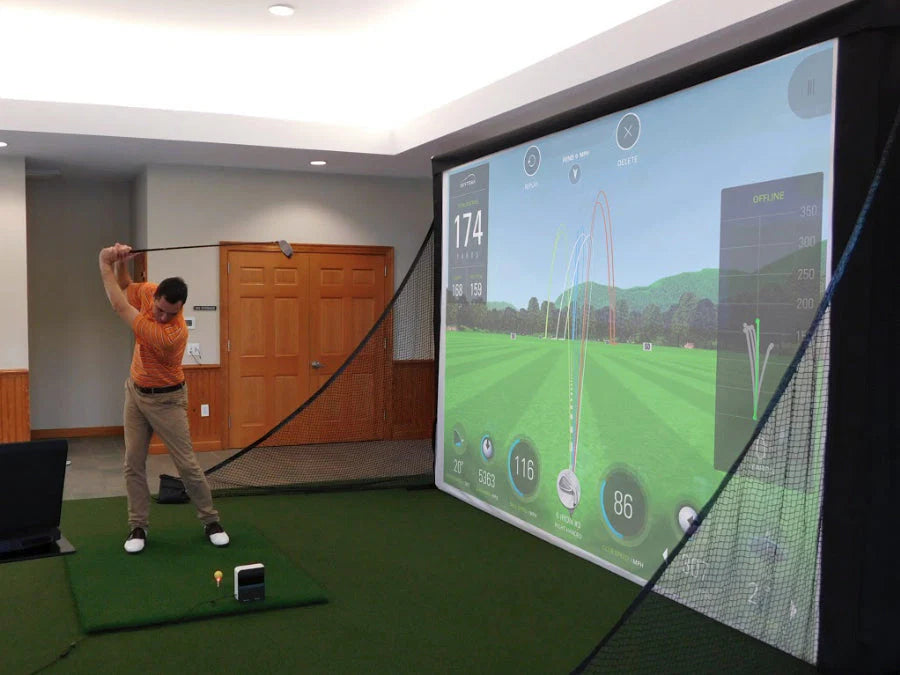

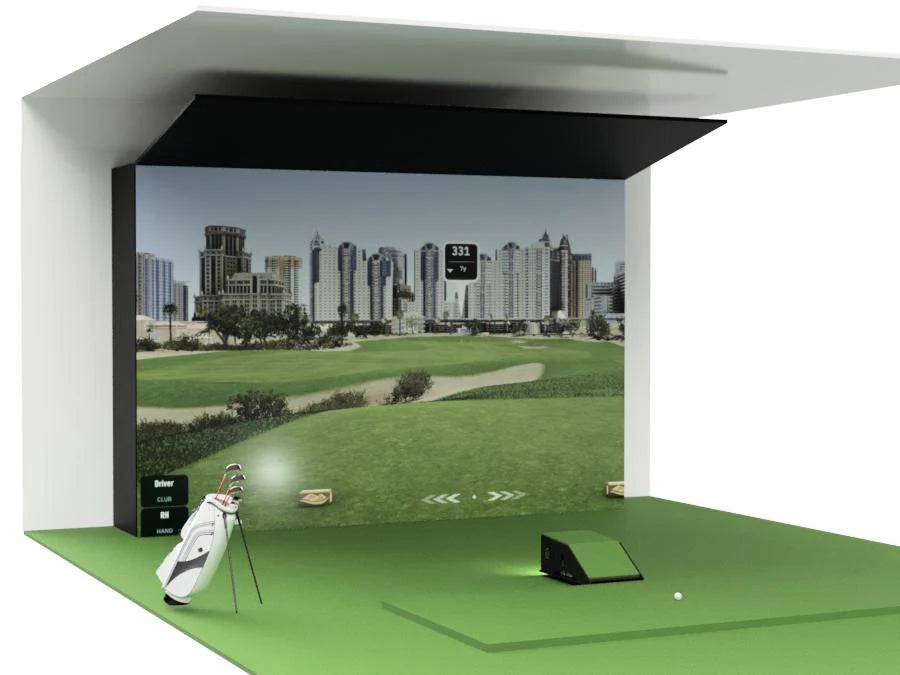

"MicroBay™ Compact Golf Simulator for Small Rooms"

The AllSportSystems MicroBay™ is an indoor golf simulator enclosure purpose-built for small rooms and tight spaces. Unlike traditional enclosed bays, the MicroBay™ uses a free-standing open-front frame design where the leg poles extend only 3 feet from the back wall and the screen system occupies just 2 feet of room depth, making it ideal for spaces as small as 10' × 12' with 8-foot ceilings. The impact screen is recessed behind the rear frame, allowing the MicroBay™ to be placed directly against a wall with no additional gap required. Separate black fabric side panels and a top panel create a clean, contained hitting environment, while two SideRite™ nylon-coated cable wire and turnbuckle assemblies tension the screen for a smooth, flat projection surface. Blackout sleeves on the bottom leg poles and adhesive Velcro strips on the top screen pole ensure a tidy, light-controlled setup. Fabric upgrade options and a wide range of compatible accessories make the MicroBay™ a highly adaptable small-room simulator solution. Custom sizes are available, and poles are sold separately.

Note: Poles are not included with this enclosure. They can be purchased as an add-on Precut EMT Pole Kit or sourced locally from a home improvement store as 1" common EMT conduit using the included cutting chart.

Features

• Free-standing open-front design with minimal room footprint — leg poles extend 3 ft from wall, screen system extends only 2 ft into the room
• Recessed screen design allows placement directly against a wall with no clearance gap needed
• Separate black RipStop fabric top panel and two side panels create a clean, contained hitting environment
• SideRite™ dual nylon-coated steel cable wire and turnbuckle system provides adjustable, even screen tensioning
• Screen hangs via cable ties from the top screen pole for level, flush-to-floor positioning
• Blackout Velcro sleeves on bottom leg poles reduce light bleed
• Adhesive Stiff Hook Velcro strip on top screen pole secures the top panel and optional FoamDefender™ Safety Valance
• Side panels are interchangeable and reversible for use with or without SkyGuard™ netting
• Compatible with optional FoamDefender™ Safety Valance for top screen pole protection (must be installed before SkyGuard netting)
• Compatible with optional SkyBridge™ Rigid Screen Brackets for the flattest possible screen (recommended for bays wider than 10 ft)
• Compatible with optional SkyGuard™ or SkyGuardPLUS™ top and side netting system for stray shot protection
• Compatible with optional 45° Angled Side Netting extensions
• Compatible with optional Black Rear Panel for full enclosure coverage
• Compatible with optional projector mounts and shields including TerraShield™ and sliding ceiling projector mounts
• Fabric upgrade options available: Standard, Premium, and Elite (multilayer foam-core for superior image quality, recommended for HD and 4K projectors)
• Custom sizing available
• Poles sold separately

What's Included

Fabric Components:

• 1x Black Fabric Top Panel
• 2x Black Fabric Side Panels
• 2x Black Fabric Pole Sleeves
• 1x Impact Screen

Connector Kit:

• 4x 3-Way Connectors
• 2x 90° Connectors (not included if SkyBridge™ upgrade is purchased)
• 4x T-Connectors
• 3x Pole Couplers (only if wider than 10 ft)

Additional Hardware:

• 1x Package of Cable (Zip) Ties
• 1x Adhesive Velcro Stiff Hook Strip (for screen pole/top panel)
• 1x Adhesive Velcro Soft Loop Strip (for rear poles/side panels)
• 2x Nylon Coated Cable Wire & Turnbuckle Assemblies

For enclosures wider than 10 feet, the connector kit includes 3x Pole Couplers.

Poles are not included. They are available as an optional add-on (Precut EMT Pole Kit) or can be purchased locally as 1" common EMT conduit and cut to size using the included sizing chart.

Specifications

• Wrapper Material: RipStop fabric (Standard, Premium, or Elite upgrade available) Frame
•  Compatibility: 1" EMT conduit (actual diameter 1-3/16" / 30.16 mm) Poles: Sold separately
•  Leg Depth (bottom): 3 ft from wall Screen System Depth (top): 2 ft into room Minimum
•  Room Size: 10' × 12' with 8 ft ceilings

Documentation

MicroBay™ Installation Guide (PDF)
