"Flex Bay™ Golf Simulator Safety Enclosure with Impact Screen"

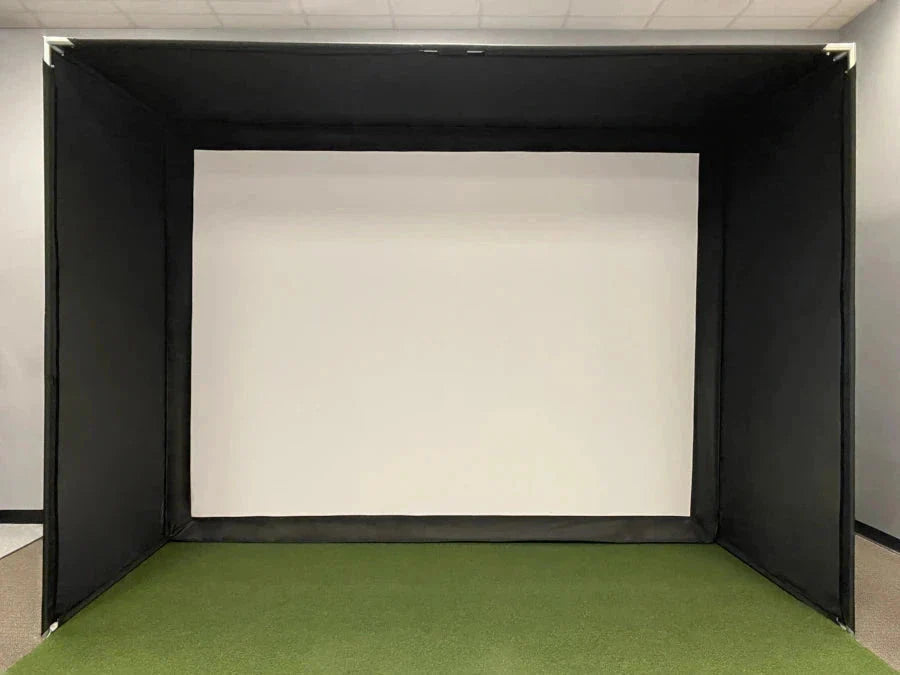

The AllSportSystems Flex Bay™ is an indoor golf simulator enclosure designed to maximize safety at an accessible price point. The entire bay is wrapped in a single layer of RipStop fabric that covers all sides and the top, creating a clean, contained hitting environment. The impact screen sits in a recessed position within the enclosure, and a commercial baffle net mounts directly behind it for added ball containment. Foam inserts on the interior poles reduce the risk of ball contact with the frame. The Flex Bay™ is designed to sit directly against a wall, making it a practical option for tighter spaces. Custom sizes are available, and setup takes approximately 3 hours.

Note: Poles are not included with this enclosure. They can be purchased as an add-on or sourced locally from a home improvement store using the included cutting chart.

Features

• Single-piece RipStop fabric wrapper covers all sides and the top of the enclosure

• Recessed screen pole positions the impact screen inside the frame for added protection

• Commercial baffle net installs directly behind the impact screen for secondary ball containment

• Foam inserts on all interior poles minimize risk of ball contact with the frame

• Bungee-based screen tensioning system for secure screen installation

• Enclosure can be positioned flush against a wall due to the inset screen design

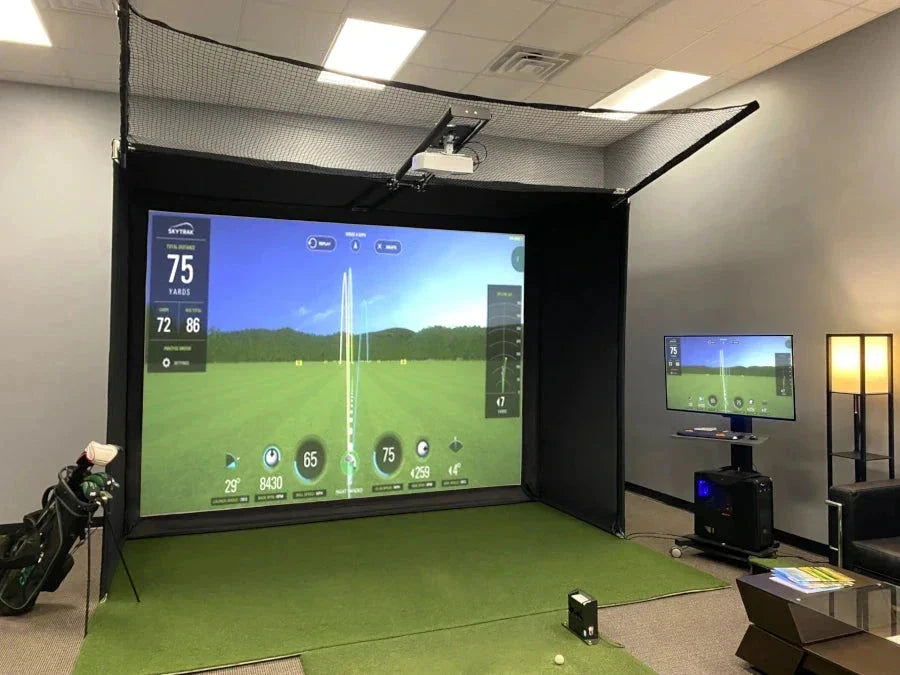

• Compatible with optional SkyRailPLUS™ projector mount (no ceiling drilling required)

• Compatible with optional SkyBridge™ Span Brackets for improved screen flatness (recommended for bays wider than 10 feet)

• Compatible with optional SkyGuard™ external netting system for extended stray shot protection

• Custom sizing available

• Approximately 3-hour setup time

What's Included

Fabric Components:

• 1x Black Fabric Wrapper

• 2x Black Pole Sleeves

• 1x Impact Screen

• 1x Baffle Net

• 4x Screen/Foam Trim Panels

• 8x Foam Inserts

Connector Kit:

• 6x 3-Way Connectors

• 4x 3-Way Connectors with Pass-Through

• 2x 90° Connectors

Additional Hardware:

• 1x Ball Bungee Strap

For enclosures wider than 10 feet, the connector kit also includes 5x Couplers and 10x Hex Bolts.

Poles are not included. They are available as an optional add-on (EMT Pole Kit) or can be purchased locally as 1" common EMT conduit and cut to size using the included sizing chart.

Specifications

• Wrapper Material: RipStop fabric

• Frame Compatibility: 1" EMT conduit (actual diameter 1-3/16" / 30.16 mm)

• Poles: Sold separately

• Estimated Setup Time: ~3 hours

Documentation

Flex Bay™ Installation Guide (PDF)
